Product Details:
Payment & Shipping Terms:
|
Capacity:: | 15kg-150kg | Loading Type: | Front Loading |
---|---|---|---|
Raw Material: | Stainless Steel 304 | Heating:: | Electric, Steam, Electric&Steam,Hot & Cold Water |
Automatic: | Automatic & Manual | Voltage: | 110v,220v,380v,400v,440v |
Packing: | Pallet Or Wooden Case | HS Code: | 84502000 |
Suspension: | Full Suspension Shock Structure | Door: | Front And Single |
Highlight: | industrial washing machine,commercial grade washing machine |

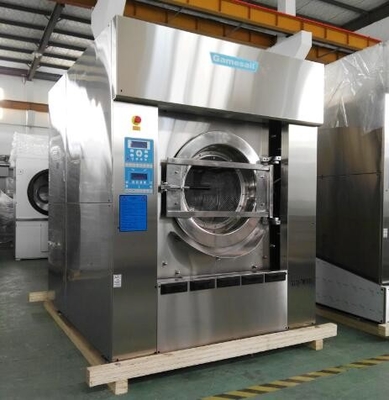

Washer extractor
Softmount High Speed Industrial Washer-Extractors for Medium to Large Sized On Premise Laundry, Commercial and Industrial Laundry Applications, Including Resort Hospitality, Health Care, and Correctional Facilities
Save Steam
· A traditional laundry machine relies on steam to act as the primary cleaning medium. Because of this, even the so-called “high-efficiency” models still consume bathfuls of steam with every wash cycle. A XGQ-G machine have 350G extract force which reduces energy consumption and 350G extraction equals less time in the dryer. Less drying time can save 20% steam consumption for dryer. With our steam-saving type GZZ-G dryer machine,it can save 40% steam consumption and reduce 50% drying time.The steam is recycled. Save 20% steam for washer,40% steam for dryer.
Sustainability
The efficiency of the XGQ-G machine makes it the ideal tool for ecologically-minded companies is an environment-friendly solution for your fabric washing needs. Plus, the GZZ-G dryer are steam re-usable and fully recyclable, allowing them to save the cost for clients.
Garment Life
Traditional washing machines rely on high temperatures and large amounts of harsh chemicals to get fabrics clean. XGQ achieves a cleaner result with lower temperatures and less detergent, which means less wear and tear on your expensive sheets, towels, and the clothes you value.
Save Money
By reducing the amount of steam, energy and detergents used in each laundry load, Gamesail saves you money on every load you wash. Not only do your steam and energy use costs go down, but improving the efficiency of your washing process and saving you time.
PERSONAL CARD
Parameter
TYPE | XGQ-15FII | XGQ-20FII | XGQ-25FII | XGQ-30FII | XGQ-50FII | XGQ-70FII | XGQ-100FII | XGQ-130FII | |
CAPACITY | |||||||||
Drum capacity | kg | 15 | 20 | 25 | 30 | 50 | 70 | 100 | 130 |
Drum volume | L | 160 | 195 | 250 | 315 | 540 | 708 | 1010 | 1300 |
Number of drums | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Number ofloading doors | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Number of unloading doors | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
DRUM SPEED | |||||||||
Washing speed | rpm | 50 | 48 | 45 | 37 | 36 | 35 | 34 | 32 |
Highest spin speed | rpm | 800 | 780 | 750 | 750 | 720 | 700 | 680 | 635 |
G-force | rpm | 230 | 240 | 250 | 285 | 300 | 300 | 300 | 300 |
HEATING | |||||||||
Electric | kw | 14 | 18 | 21 | 21 | 42 | 46 | / | / |
Steam ratio | kg/kg | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
CONNECTIONS | |||||||||
Water inlet | ZG1.0" | ZG1.0" | ZG1.2" | ZG1.5" | ZG1.5" | ZG1.5" | ZG1.5" | ZG2.0" | |
Steam inlet | ZG3/4" | ZG3/4" | ZG3/4" | ZG1.0" | ZG1.0" | ZG1.0" | ZG1.0" | ZG1.5" | |
DIMENTIONS | |||||||||
Width | mm | 930 | 1000 | 1150 | 1460 | 1610 | 1650 | 1760 | 1950 |
Depth | mm | 1100 | 1170 | 1220 | 1440 | 1680 | 1960 | 2090 | 2220 |
Height | mm | 1530 | 1560 | 1600 | 1840 | 2040 | 2160 | 1970 | 2175 |
THE FACTORY
Located in the Shanghai, a beautiful city in China, Shanghai Gamesail washing machine CO., LTD owns many factory buildings, covering an area of 12000 square meters.
Founded in early 2002, with years’ efforts, we have developed a variety of machine series including water washing, drying, ironing, dry cleaning and other related auxiliary equipment, making the total variety exceeding 70. We are capable of providing diversified solutions to our customers to meet their different needs.
With a number of professional talents of many years’ experience in developing, manufacturing, sales and service of washing machines, we provide superior and timely after sales service. In order to meet different needs of our customers, we provide professional integrated solutions to ensure the most benefits of customers with the least input and to develop together with them.
Holding the tenet of sustainable development and win-win result with our cooperators, we always set our goal as: to be the first in cost-performance. Our products rank high in quality and service life, for which we are chosen by countless customers. However, our price is customer friendly, which ends in our superior cost-performance. That best answers why we enjoy great popularity in our customers.
